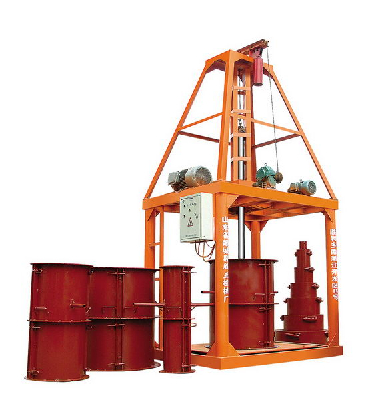

Introduction of concrete pipe making machine
SY Series Pipe Machines are ideal equipment for producing concrete tubes now. it is reasonable in design, beautiful in appearance, reliable in performance and convenient in operating.
Its quality is approved by ISO9001 and CE.
With this series of machines, the concrete tubes with specifications of 200 -1000mm can be produced by using pulverized coal ash, slag, sands and crushed stone pulsing little quantity of cement.

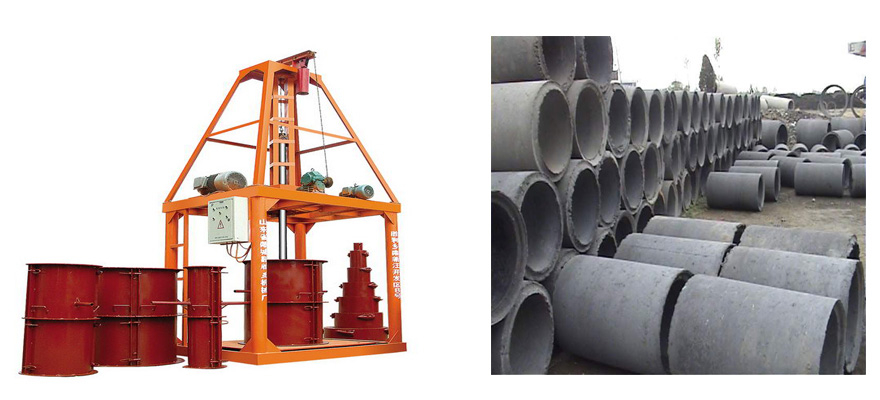

The tubes produced with this series machines are even in their wall thickness, smooth on surface, high in compression strength, convenient and firm in connection, and excellent in anti-seeping, which are widely used in agricultural irrigation and draining projects in cities.
- Size: 15
- Place of Origin: Shandong
- Brand Name: shengya
- Model Number: SY
- Weight: 3500.000 kg
| Specification | SY800 | SY1000 |
| Diameter（mm） | 150-800 | 150-1000 |
| Lenth（mm） | 1000 | 1000 |
| Speed of main shaft（r/min） | 55-92 | 35 |
| Speed of main shaft lift and drop（m/min） | 5 | 5 |
| Main Motor Power（KW） | 15 | 22 |
| Vice Motor Power（kw） | 2.2 | 2.2 |
| Production capacity（m/h） | 18-22 | 13-16 |
