Shengya machinery QT5-20 automatic hydraulic concrete hollow blockmachine/paver brick making machine

Shengya machinery QT5-20 automatic hydraulic concrete hollow blockmachine/paver brick making machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2007-01-09
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  15
  • Place of Origin:  Shandong
  • Brand Name:  shengya
  • Model Number:  QT5-20
  • Weight: 3500.000 kg



1. Siemens motor(or ABB) is used, whose life time is 1.3 times than  common motor.



2. Japan Mitsubishi PLC control system and Omron travel switch are adopted, achieving dialogue and exchange between human and  machine. Dozens of mechanical action of different  products .could be adjusted through the menu to select the addition and subtraction without needing professionals.

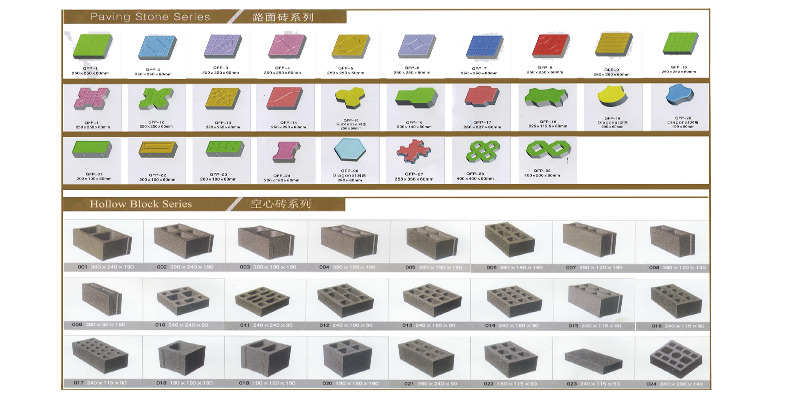

3. As a multi-purpose machine, exchangeable mold can produce normal block ,hollow block, multi-holes brick and paving bricks.



4. Scatter material through revolving 360 degree ,this process likes to mix the material again after the mixer ,the technology makes the block evenly and high density.



5. Mould got heat treatment and carburization, making the anti-wear ability 1.2times than other mould



6. The computer controlled the direction vibration frequency and brake to cancel the vibration energy.



7. Feeding in low frequency, vibration in high frequency ,and increasing in head tanks. Table and mould vibrating together will make concrete fully liquefied and exhausted in 2-3 seconds to achieve high density and high strength, particularly be suitable for the production of high strength blocks ,you can stack immediately after forming.


  • Size:  15
  • Place of Origin:  Shandong
  • Brand Name:  shengya
  • Model Number:  QT5-20
  • Weight: 3500.000 kg
1)Product NameQT5-20 blocks machines for construction
2)StandardsISO9001/CE/SGS
3)Overall Size3650(L)×2100(W)×2720(H)mm
4)Cycle 20 Seconds for one sheet
6)Raw MaterialConcrete, sand, cement and others
7)Carriage Size

Plastic pallet1100(L)*550(W)*20(H)mm
Bamboo pallet1100(L)*550(W)*25(H)mm
Wooden pallet1100(L)*550(W)*30(H)mm
8)Vibration Force50KN
9)Electrical Source 380V/50Hz/22KW(We can equip motor according to your electricity request)
10)Weight3500kg
11)Packing20FT Container
12)Price TermFOB Qingdao, China,CFR,CIF
11)Shipping Method By Sea
13)Payment Terms T/T, L/C, West Union
14)Production Time20-30 days after got 30% deposit
