1.For SY1-10 brick making machine

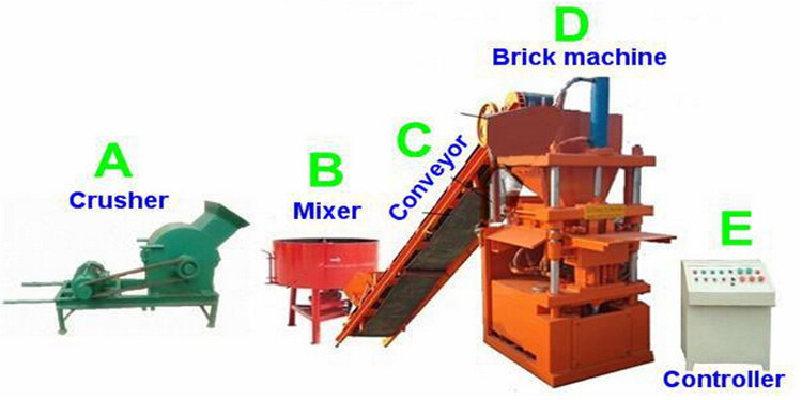

SY1-10 interlocking soil block machine is our newest clay and cement brick making machine.
it is automatic operation machine.its material feeding.mould pressing and mould lifting automaticlly..
you can chose diesel engine or motor.
The most versatile of the market, for enable varied models of blocks, bricks and floors in only one equipment, without the
need of buy another machine.manufactured with precision in a Machining Center, its interior receives a thermal treatment and
is rectified. Compound by modeler wombs interchangeable enabling flexibilities of different forms and models for the pressed
blocks, bricks and floors
2. Conditions and Terms:
1) The above price is based on FOB Qingdao,China.
2)Delivery time: within 20 days after payment.
3)Term of Payment : 30% by T/T before production and balance T/T before loading.
4)Packing:Nude packing
5)Installation: we would send our technician for operation as buyer's requirement,but all charge and cost are on buyer's account
3. Advantages:
1)22 years' brick machine factory with CE,ISO quality certificates
2) 8 overseas offices ensure good and in time after sales service
3)Good quality, for example: thicker brick machine frame steel, and hard moulding steel, all those will ensure block machine and mold using life.
Please feel free to contact me for further business talk! Thank you!
Mobile: 0086 13316165676(WhatsApp&WeChat)
E-mail:brick11 at sdshengya.com
- Size: 5
- Place of Origin: China
- Brand Name: shengya
- Model Number: SY1-10
- Weight: 1000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Ratio of different material for the bricks
1. cement,clay
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 6-8% |
clay | 80-90% |
Other specify | You can change the proportion depend on your needs. This block is heavy,but strong |
2. Full clay
Raw Materials | Quantity per piece |
Water | 3% |
clay | 90-95% |
Other specify | You can change the proportion depend on your needs. This block is light,but not so strong |
Main technical specifications:
Main specification and technical parameters | |
Overall size | 1000(L)×1000(W)×1800(H)mm |
Shaping cycle | 7-10 seconds |
Power (choice) | 5.5 KW |
12 Hp diesel engine | |
Pressure | 15-22 Mpa |
Total weight | 1000 KGS |
