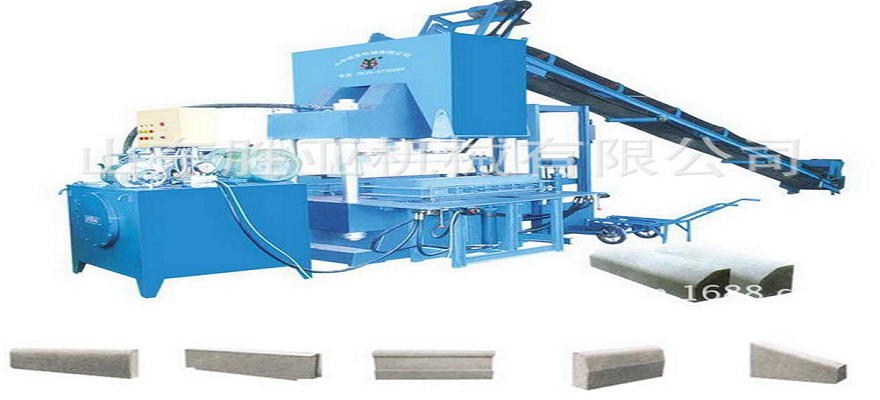

SY-3000 type hydraulic press machine having a multi-functional, high degree of automation, production speed, maximum pressure up to 3000KN, equipped with conveyor belts, storage hopper automatic feeding, hydraulic lifts automatic unloading bricks, reduce labor intensity and improve production efficiency, suitable in the production of large-sized curbs, grass brick, crash barriers, and can be added with a production of color brick road agencies, produces a variety of pavement bricks.

Technical Parameters:
  greatest pressure
  3000KN
  Cylinder diameter
  360mm
  Pump pressure
  31.5Mpa
  Pump displacement
  63ml / r
  Motor Power
  13.2 KW
  Form Factor
  8000 × 2510 × 2400 (mm)
  Shift production
  Block 300-500 / shift (Curb)

Main technical characteristics:
1, rapid movements, increased by 6 times higher than the same old equipment lifting speed.
2, automatic rise, dwell time can be adjusted, and other functions.
3, the use of energy-efficient variable displacement piston pump automatic quantitative rebound, adjustable uprights improve work efficiency.
4, for the production of 500 × 450 × 150 the following specifications of Curb.
