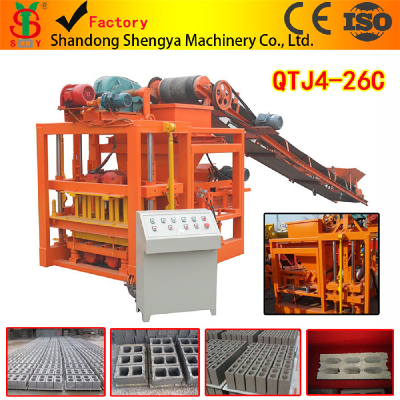

QTJ4-26C concrete block brick making machinery
1) Easy fill and discharge
2) Short mixing times
3) Low maintenance
4)Easily replaceable parts
5) Will profit in half a year after investing
1. Main Description
QTJ4-26C concrete block brick making machinery, which is developed on the basis of small and medium model. The position-setting of the mould and the discharge head are more accurate. The down-mould adopts the vertical, directional vibrating device while the up-mould uses the pressure vibrating. So the blocks made by this machine are even, high in density and strength. Also the automatic material distributing system greatly increase the productivity.
2.Quality guarantee for QTJ4-26C concrete block brick making machinery
1) Our worker will test the machine for making blocks before we sent it out,So please rest assure.
2) The warranty is one year on this machine, we will pack some rapid wearing parts for the machine
3.Shipping way for QTJ4-26C concrete block brick making machinery
We have our own long cooperate shipping company, they can offer the best freight. And if you would like,we can use your shipping company to sent the machines.
- Size: 12
- Place of Origin: Shandong
- Brand Name: shengya
- Model Number: QTJ4-26C
- Weight: 2500.000 kg
- :
- :
- :
1. Technical Data for QTJ4-26C concrete block brick making machinery
1)Overall Size | 3000(L)*1600(W)*2500(H)MM | |
2)Cycle | 26 Seconds for one sheet | |
3)Carriage Size | 850*550*2 5MM | |
4)Raw Material | concrete, sand, cement,fly ash or others | in your condition |
5)Vibration Force | 22KN | |
6)Electrical Source | 380V/50Hz/11.75KW | |
10)Weight | 3000kg |
2. Production Capacity Table QTJ4-26C concrete block brick making machinery
Block Size | pcs/mould | pcs/hour | pcs/8 hour |
400x200x200mm | 4 | 600 | 3800 |
400x150x200mm | 5 | 700 | 5600 |
400x100x200mm | 6 | 850 | 7000 |
