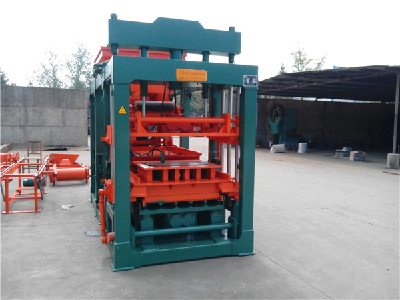

QT6-15 fully automatic hydraulic cement block making machine, brick machine for sale

QT6-15 fully automatic hydraulic cement block making machine, brick machine for sale

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10000 Sets per Week
  • Port: qingdao
  • Payment Terms: L/C,T/T,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2007-01-09
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  shandong
  • Brand Name:  shengya
  • Model Number:  QT6-15

Introduction

 automatic brick making machine united arab emirates QT6-15

Main advantages as follows:

1. operation according to the menu: starting the machine by the screen instruction, it can run automatically, and can    realize unmanned operation.  2. full intelligent quality control: advanced distribution pattern, to ensure that the same plate brick quality error less than 2%;  full intelligent monitoring system, to ensure that each board brick quality be consistent from beginning to the end, and also  meet the strength requirements.  3. full intelligent fault treatment: fault not caused by the components, the machine can automatically judge and remove, no  need the artificial solutions, to ensure the production proceed without interruption.  4. intelligent data statistics: in the process of production, various kinds of data can be collected according to the user's  requirements, and can automatically adjust some parameters on time, so that it could control the quality of products more effectively.

  • Place of Origin:  shandong
  • Brand Name:  shengya
  • Model Number:  QT6-15


 Introduction
Quick Details

Condition:  New Type:  Hollow Block Making Machine Brick Raw Material:  Concrete
Processing:  Brick Production Line Method:  Hydraulic Pressure Automatic:  Yes
Capacity:  11520pcs/8h Place of Origin:  Shandong China (Mainland) Brand Name:  shengya
Model Number:  QT6-15 Voltage:  380v Power:  36.4kw
Dimension(L*W*H):  3800x200x2510mm Certification:  CE Warranty:  one year
After-sales Service Provided:
Overseas service center available
Packaging & Delivery

Specifications

1)intelligence PLC system
2)11520pcs/shift
3)office in Tanzania,Algeria,Nigeria
4)many kinds of bricks
5)CE,ISO9001:2008

Technical Parameters


 Overall Size 4400X1650X2650mm Cycle 13-18 Seconds Pallet  Size 900(L)×680(W)×30(H)mm Power 28.65 kw vibration force 80kn vibration frequency 45-50HZ rated pressure 21Mpa


Production Capacity


 SIZE(L*W*H) pcs/drop pcs/hr pcs/shift 400X100X200 12 1800-2520 14400-20160 400X150X200 8 1200-1680 9600-13440 400X200X200 6 900-1260 7200-10080 400X250X200 4 600-840 4800-6720 Paver:200X100X60 21 3150 25200 Paver:200X163X60 9 1350 10800


Machine Characters:
PLC intelligent control. Man-machine interface, control system
equipped with complete logic control, production program, malfunction
diagnosis system and remote control function. So it doesn’t need a
professional person but only need a simple training to the operator.
3)Product scope:
It produces various bricks/blocks including color-face bricks(layered material feeding),through body tiles, dock linkage blocks,road curb bricks,
sod bricks,hydraulic blocks hollow blocks,perforated bricks, and standard bricks etc.
