- Size: 15
- Place of Origin: Shandong China
- Brand Name: shengya
- Model Number: QT6-15
- Weight: 6000.000 kg

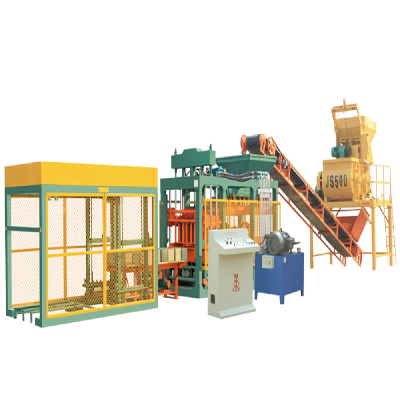

1.QT6-15 block making machine concrete uses hydraulic pressure system. Its hydraulic motor can provide super power.As a multi-purpose machine, exchanging mold can produce standard bricks, hollow bricks,multi-hole bricks.
>>2.The PLC computer controlled directional vibration, frequency and brake to cancel the vibration energy.
>>3.Feeding in low-frequency, vibrating in high-frequency, and table and Mould vibrating together will make concrete fully
liquefied and exhausted within 2-3 seconds to achieve high-density and high strength, Particularly be suitable for the
production of high-strength blocks, you can stack immediately after forming.
>>4.Storing materials of the host machine is controlled by the photoelectricity, material namely use namely send to avoid the impact of aftershocks, some concrete liquefied advanced.
>>5.Swinging loading device is installed in the feeding hopper,it can put the materials into the molding box uniformly by
adjusting the swinging fork. Imports of electric appliances and the original hydraulic component could make the control system and hydraulic system basically operate without fault; ten formulations kept by the computer can be called at random.dozens of mechanical action of different products could be adjusted through the menu to select the addition and subtraction without needing professionals.
>>6.QT6-15 automatic concrete block machines , block machines manufacture use the Siemens motor(or ABB) which is with best quality.Its life is 1.3 times than common motor.
- Size: 15
- Place of Origin: Shandong China
- Brand Name: shengya
- Model Number: QT6-15
- Weight: 6000.000 kg
over size | 2850x2100x2600mm | |
Shaping cycle | 15-18s | |
Pallet size | 900x700x25mm (bamboo) 900x700x25mm (PVC) | |
Vibration frequency | Max.5500 R/Min | |
Electricity | 380V/220V/ (adjustable) | |
Vibration force | 55kn | |
Total weight | 6500kgs |
