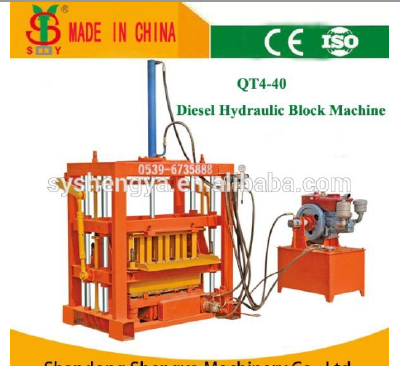

QT4-40 hydraulic diesel power Concrete Hollow Brick Making Machine/electric power Solid Hollow Block Machine
Introduction |
1.The building block machine, through mould and by application of fly ash and other industrial waste, can produce all kinds of hollow block.solid block, which are widely used in the construction of municipal works, buildings, garden sand roads and its productivity is very high. 2.The products made by them can be piled up (3-5layers immediately after they are shaped.) |
More Information |
1. Area: Workshop area: 30-50m2, all factory area 1000m2, the bigger, the better. 2. Workers : two or three. 3. Ratio of raw material(Subject to the real condition) : cement 8% -10% sand 30%-40% stone:50%-60% ,about cement :sand : stone is1:4:5. 4.Hollow block weight:(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG 5. Raw material consumption per day:30-40T 6. Water consumption per day:3%-5% of raw material Weight. |
Machine Parameters | ||
Machine power | diesel | |
Molding cycle | 40s | |
Capacity | 3000pcs/8hours | |
Raw material | concrete, sand,cement, fly ash, lime, gypsum,etc. | |
Machine weight | 1000KGS | |
Overall size | 1580*1100*2100mm | |
Worker | 1-3 people | |
Hydraulic pressure | 16 Mpa | |
Productivity | |||||
No. | Block size | Pcs/mould | Pcs/hour | Pcs/8hours | |
1. | 400*200*200mm | 4 | 375 | 3000 | |
easy to operate best prices hydraulic concrete cement brick/block making machine QT4-40
1.Simple introduction of QT4-40 hydraulic concrete cement brick/block machine
1)Not using the clay as raw material to destroy any field.
2)Making use of three industrial wastes to change wastes into valuables.
3)Not using fire to bake blocks and not building kiln to save the energy sources and fields.
4)No chimney to protect the environment and avoid pollution.
5)Production process is simple, they can be made everywhere .
6)Low investment and achieving much faster results, customers can profit in half a year after investing.
7)The block can be produced all around the year.
8)Good looking, construction convenient, low-floor real jigsaw puzzle, and the high buildings do filler and cheap.
9)Technical criteria is better than those of red brick and green brick.
2.Specification of QT4-40 hydraulic concrete cement brick/block machine
Power | 9.6KW |
Cycle | 40S |
Overall Size | 1580X1100X2100mm |
Carriage Size | 850X470X30mm |
Electrical source | 380V/50Hz |
Vibration Frequency | Max.3000r/m |
Total mass | 1500kg |
Standards | JC/T920-2003 |
product quantity | 400*200*200 4pcs/mould 2880pcs/8h 400*150*200 5pcs/mould 3600pcs/8h 400*120*200 6pcs/mould 4320pcs/8h |
3.Packaging & Shipping
Packing: Iron Box or nude
Delivery Date: 15-20 days after confirming the down payment.
Shipping Method: By sea or as ur requirement
Shipping Port: Qingdao, China.
We have our long-term and reliable shipping company, which could guarantee to provide best freight service. However, if the customer required, we could use their own nominated shipping service.
4.Company info.
Shandong Shengya Machinery Co.,LTD. was founded in 1995, We have been always working for the concrete block machines,concrete pipe making machine and mixers design, production and sales. For many years we have to perfect the quality, export block machines to more than 100 countries and regions, and also have office in Nigeria, Tanzania & Algeria now, then can serve the clients much better.
If you have any question , please feel free to conatct ME for any further business talk!
Thanks for your time and attention!
Best Regards,
Cell: 86 13316165676(whatsapp&wechat)
