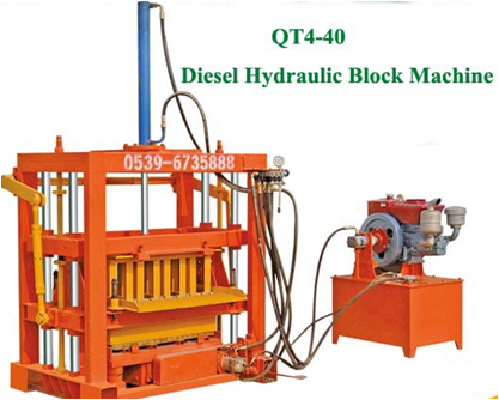

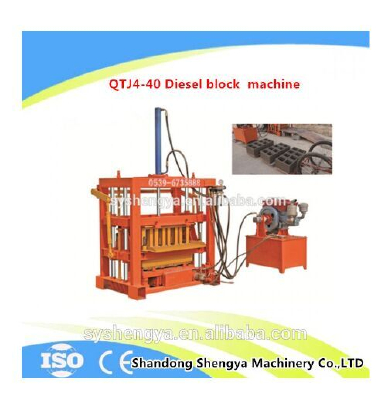

SHENGYA MACHINERY QTJ4-30 concrete block making machine,maquina de bloco de concreto
Product Description
Brief Introduce of SHENGYA MACHINERY QTJ4-30 concrete block making machine,maquina de bloco de concreto
QT4-40-block making machine use the mechanical transmission, there are manual mixture into the island-me-forming. Their products look beautiful, clear edges and corners, the weight of products error of ± 3%, strength of it up to 10.5 ((MPa), error of it is10 percent,its geometry is<± 1.5.
Technical Specifications of SHENGYA MACHINERY QTJ4-30 concrete block making machine,maquina de bloco de concreto
Power | 9.6KW |
Cycle | 40S |
Overall Size | 1580X1100X2100mm |
Carriage Size | 850X470X30mm |
Electrical source | 380V/50Hz |
Vibration Frequency | Max.3000r/m |
Total mass | 1500kg |
Standards | JC/T920-2003 |
product quantity | 400*200*200 4pcs/mould 2880pcs/8h 400*150*200 5pcs/mould 3600pcs/8h 400*120*200 6pcs/mould 4320pcs/8h |
Other information:
1. Area: Workshop area: 30-50m2, all factory area 1000m2, the bigger, the better.
2. Workers : three or four.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.Hollow block weight:(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. Raw material consumption per day:30-40T
6. Water consumption per day:3%-5% of raw material Weight.
Conditions and Terms:
1) The above price is based on FOB Qingdao,China.
2)Delivery time: within 20 days after payment.
3)Term of Payment : 30% by T/T before production and balance T/T before loading.
4)Packing:Nude packing
5)Installation: we would send our technician for operation as buyer's requirement,but all charge and cost are on buyer's account.
Advantages:
1)20 years' brick machine factory with CE,ISO quality certificates
2) 8 overseas offices ensure good and in time after sales service
3)Good quality, for example: thicker brick machine frame steel, and hard moulding steel, all those will ensure block machine and mold using life.
