- Size: 4
- Place of Origin: Shandong
- Brand Name: shengya
- Model Number: QTJ4-40
- Weight: 1500.000 kg

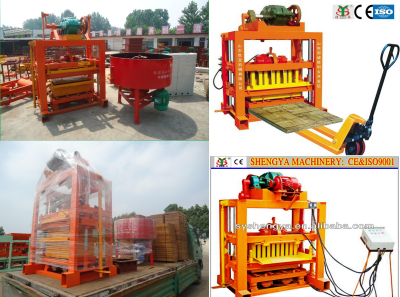

1.Description of QTJ4-40 cement brick making machine from Shengya factory
(1)Adopt imported PLC Programmable controller, make the man-machine interface as true,control systerm equiped with complet logic control,production program,malfunction diagnosis system and remote control function.
(2)Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted.
(3)Can produce the paver block with or without color on the surface,if need color,should use the face-color materail feeding device.
(4)Through mold-releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.
2.Advantage of QTJ4-40 cement brick making machine
(1)QTJ4-40 concrete /cement block making machine
Adopts four-lead, channel steel stander making the equipment more stable.
(2)QTJ4-40 concrete cement block making machine
Adopts super-strong vibration motor. And the upper mould with the bottom mould compression make the brick with high quality, more important, various kinds of materials can be used. Which improves the efficiency and greatly.
(3)QTJ4-40 brick cement blocks making machine
Adopts the machinery material of the best quality in China and the precision
welding, which makes the machine more firm and longer service life.
(4)QTJ-40 concrete blocks making machine
Based on the former block machine, QTJ40 block machine is the reformed machine with reasonable design, favorable property, and super-strong vibration motor.
- Size: 4
- Place of Origin: Shandong
- Brand Name: shengya
- Model Number: QTJ4-40
- Weight: 1500.000 kg
3.Technical Specification of QTJ4-40 cement brick making machine
(1)QTJ4-40 cement brick making machine main technical specification show
| Power | 9.6KW |
| Cycle | 40S |
| Overall Size | 1580*1100*2011mm |
| Carriage Size | 850*470*30mm |
| Vibration Frequency | Max.3000r/s |
| Total mass | 1500KG |
| Standards | JC/T920-2003 |
(2)QTJ4-40 cement brick making machine production capacity show
| Size | pcs/mould | pcs/8 hour |
| 400*200*200mm | 4 | 2880 |
| 400*150*200mm | 5 | 3600 |
| 400*120*200mm | 6 | 4320 |
4.Our Company Histoyr Introduction
Shandong Shengya Machinery Co.,LTD. was founded in 1995, We have been always working for the concrete block machines and mixers design, production and sales. For many years we have to perfect the quality, export block machines to more than 100 countries and regions, and also have office in Nigeria, Tanzania & Algeria now, then can serve the clients much better.
5.Our Company Advanatge Introduction
(1)We offer different types of block machines, small, semi-automatic and fully automatic. and make all kinds of size of moulds, according to customer requirements
(2) We have about 200 workers,50 sales manager and 10 professional designers of 20 years experience
(3)Professional factory: we are manufacturer, specializing in manufacturing block machines, mixers for 20 years.
(4)Competitive price with good quality, the deadline usually is 25-35 working days.
(5)Our worker will test the machine for making blocks before we send it out,So please rest assure.
(6)Rapid response to your needs: We will be answer within 24 hours. Welcome to contact with us if you have any problems. We are looking forward to cooperating with you.
6.Our Prefect Advantage Service Introduction
(1)Perfect pre-sale service:
We offer reasonable quotation and professional product knowledge to consulting services.
We will design reasonable product configuration and the project feasibility plan for you according to your requirements.
(2)Sales service:
Arrange production in time and notify the customer production schedule, if the customer request, we can provide professional security of transportation and insurance, timely delivery.
(3)After-sale service:
Arrange the engineers to go abroad to installation, commissioning equipment, follow-up service, help customers to solve the problem.
